Can You Get a Fibreglass Infinity Pool? (Yes, With Caveats)

The standard line from concrete builders is “infinity pools are concrete only”. That's not quite right. The honest answer is yes, with a hybrid approach, and on the right block the result looks excellent. Infinity used to mean concrete-only, and that's no longer true, which shifts one of the central trade-offs in our Fibreglass vs Concrete vs Vinyl Pools comparison.

A quick heads-up on this one: an infinity build isn't a kit-and-DIY job. Even committed DIYers usually bring in a builder and a structural engineer for the edge and basin, though the pool itself can still be a CFPK fibreglass shell.

What an Infinity Pool Actually Is

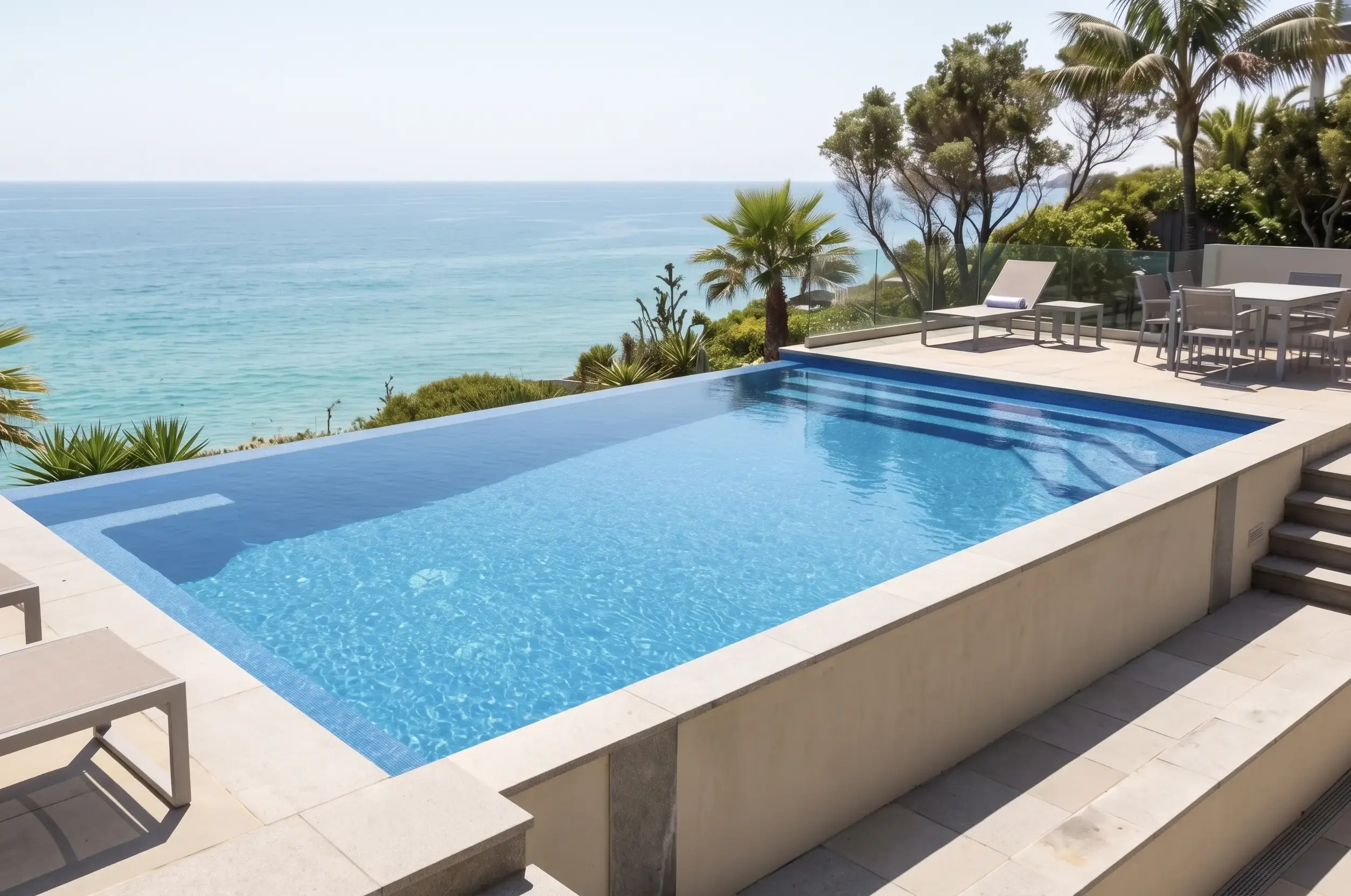

Worth defining, because the term gets used loosely. A true infinity pool (also called vanishing-edge or negative-edge) has at least one edge where the water sits exactly at the wall lip and spills into a hidden catch basin below. From the right angle, looking out from the pool towards the view, the water appears to merge with the horizon. That's the trick. A few related types get lumped in with it:

• Infinity / vanishing edge. True spillover into a hidden basin, with water constantly recirculated back up to hold the level.

• Knife edge / wet edge. A finer edge detail achieved with very precise concrete or stone; the water laps right at the edge.

• Spillover wall. Water spills over a feature wall into a smaller pool or pond. Often called “infinity” but technically a different effect.

• Negative edge with deck overflow. Water sits flush with the deck and spills under grating into a sub-deck trough.

The pure infinity edge, the most-photographed version, is the one worth focusing on here.

The Fibreglass and Concrete Hybrid

The catch with a fibreglass infinity is that the spillover edge can't be fibreglass. That edge has to be dead level, dead straight, and able to take continuous water flow along its whole length, and fibreglass moulds aren't made to that tolerance.

So the structural pool is a standard fibreglass shell, and a custom concrete edge wall is built along the spillover side, integrated with the bond beam. The shell sits at below-water-level depth; the concrete edge provides the precise lip for water to spill over. Done well, the water surface sits flush with the concrete edge and you can't see where the fibreglass ends and the concrete begins. The basic sequence:

1. Excavate and set the fibreglass shell as a standard install, choosing a shape with a straight side on the spillover orientation.

2. Build the concrete edge wall along the spillover side, tied structurally into the bond beam.

3. Tile or render the concrete edge to match the pool, usually a deep blue or dark mosaic that blends with the gel-coat colour.

4. Build the catch basin below the edge, sized to hold the water in flight over the lip plus a buffer.

5. Plumb a dedicated recirculation pump to lift water from the basin back to the pool.

6. Commission and tune, so the level holds the spillover effect without splashing or under-spilling.

That gets you most of the visual effect of an all-concrete infinity for meaningfully less.

What It Costs

We can't put one fixed number on an infinity build, so treat this as direction rather than a quote. Start from a standard fibreglass install, roughly $45,000 to $60,000 fully installed for a mid-size pool as a guide, then add the custom concrete edge, the catch basin, the extra engineering and a second pump.

That premium is real, but it still lands well under an all-concrete infinity of similar size and finish, which is the whole point of going hybrid. The ongoing cost is a little higher too, since the recirculation pump runs whenever you want the spillover visible.

For the full ownership picture, see our Lifetime Cost Analysis and the Complete Fibreglass Pool Cost Guide.

We can't put one fixed number on an infinity build, so treat this as direction rather than a quote. Start from a standard fibreglass install, roughly $45,000 to $60,000 fully installed for a mid-size pool as a guide, then add the custom concrete edge, the catch basin, the extra engineering and a second pump.

That premium is real, but it still lands well under an all-concrete infinity of similar size and finish, which is the whole point of going hybrid. The ongoing cost is a little higher too, since the recirculation pump runs whenever you want the spillover visible.

For the full ownership picture, see our Lifetime Cost Analysis and the Complete Fibreglass Pool Cost Guide.

Site Requirements: View, Slope, Engineering

Three things have to line up, and getting any of them wrong means paying extra for a feature that doesn't earn its keep.

• View. The whole point is the water merging with what's beyond, so you need an actual view: a coastal panorama, a valley, a vineyard, or at least a garden with real depth. An infinity edge staring at a colorbond fence five metres away is a sad pool, whatever it's made of.

• Slope. The edge has to spill into a hidden basin, so the pool sits at the high side of a fall with the basin tucked into the slope below. A flat block doesn't suit infinity unless the basin is designed as a visible feature pond.

• Engineering. Integrating the fibreglass shell, concrete edge wall and basin needs proper engineering and sign-off. This is not a kit-and-DIY scenario, a structural engineer on the design is standard.



Where Pure Concrete Still Wins

The honest concession: some infinity designs are still better in concrete.

• True knife-edge designs. Where every visible edge vanishes, you need precise level work all the way around. That's a concrete job.

• Curved or asymmetric infinity edges. The hybrid works best with a single straight spillover edge. Curved or wraparound infinity needs concrete shaping.

• Negative edge with deck overflow. The “water disappears under the deck grating” effect is genuinely hard on a fibreglass shell. Concrete handles it cleanly.

• Architecturally integrated infinity. When the pool is cantilevered or built into the structure of the house, concrete is the integration material of choice.

For a single-edge infinity over a coastal view or a rural valley, the most common Australian case, the fibreglass hybrid is genuinely competitive. For the full picture on what you can and can't change on a fibreglass pool, see Customisation Options: Fibreglass vs Concrete Pools.

Frequently Asked Questions

Can a fibreglass pool have an infinity edge? Yes, using a hybrid approach, a standard fibreglass shell paired with a custom concrete spillover edge and catch basin. It delivers most of the visual effect of an all-concrete infinity for meaningfully less.

How much does a fibreglass infinity pool cost? There's no single figure, since it depends on edge length, basin, site and finish. Expect it to sit above a standard fibreglass install (roughly $45,000 to $60,000 mid-size as a guide) once you add the concrete edge, basin, engineering and second pump, but still below an all-concrete infinity of similar size.

Do I need a slope for an infinity pool? Practically, yes. The edge has to spill into a hidden basin, so unless the block has a genuine fall across the pool footprint, the basin can't be tucked out of sight.

Will a fibreglass infinity pool look as good as concrete? For a single straight edge, it looks identical to most viewers, the fibreglass isn't visible from the photographed angle. Knife-edge or asymmetric designs still favour concrete for the edge precision.

Is a fibreglass infinity pool a DIY project? No. The shell can be a CFPK kit, but the concrete edge, catch basin and engineering call for a builder and a structural engineer. It's the one configuration where even keen DIYers hand the tricky part over.
